Multi-Axis CNC Controller Technical Parameters |
- 8.4” TFT Color Display with 640 x 480 Resolution
- Back Panel Includes All Connectors for Complete Machine Interface
- Standard CNC Keyboard (Alphanumeric and Numeric) with F1 to F10 Function Keys for Machine Management, such as Software, Modes, Programs, and Machine Axis Control
- Flat Color Display Shows the Different NC Screens
- Cycle Start, Feed Hold, and Reset Buttons Control Program Start/Stop/Reset Functions
- A Feedrate Override has Range Between 0 and 120%. In Automatic Mode, Axis Speeds can be Varied from 0 to 120% of the Programmed Speed
- A Hand Wheel, in Manual Mode, Moves the Axes Manually. In this Case, the Feedrate Override Button is Divided into Four Quadrants to Select the Unit of Axis Movement (0.001, 0.01, 0.1 or 0.2 Millimeters, per Hand Wheel Increment)
- In Manual Mode, the Axes can have Varied Jog Speeds from 0 to 100% of the Maximum Speed Defined in Machine Setting Page
- USB Connector Connects any USB Device such as a Mouse or Keyboard
|
| CNC Controller Programming
& CNC Software |
- Create CNC Programs
- Control and Monitor the CNC Welding System
- Position Display, Program Editor, Messages, and Tools Management Features are Simple and Quick to Set up
- G-code Language
- Linear, Circular and Spline Interpolations
- Up to 64 PLCs for I/Os (PLC Programs are Running in Background)
- Main Page Provides the Operator with Critical Machine Data at a Glance
- Data Entry and Message Pages Utilize Common Windows Interfaces which are Easy to Understand and Use
- Two Layers of Password Protection:
- Machine Manager Level (Program Select Menu, Subprograms)
- Machine Integration Level (PLCs, Calibration, Maintenance, etc.)
|
| CNC Controller
Part Program |
- Part Program Creates Movements of Axis with Rapid Moves and Sloped or Interpolated Moves (Linear or Rotary)
- Manages Some Machine Features such as Integration of Welding Parameters, i.e., High Voltage, Beam Current, Beam Focus, and Filament Current with the Axis
- Turning On and Off Discrete Inputs and Outputs in Program.
|
| Operator
Console
|

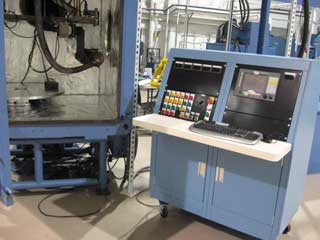

Attractive Operator Console Comprises:
- CNC Controller with Keyboard and Mouse
- Digital Display for:
- High Voltage Feedback
- Beam Current Feedback
- Bias Feedback
- Filament Current Feedback
- Focus Current Feedback
- Override Potentiometers (10 Turns with Dial) for:
- High Voltage Reference (+/- 20%)
- Beam Current Reference (+/- 20%)
- Focus Current
- Filament Current
- Potentiometer (10 turns with Dial) for Manual Adjustment of:
- Bias Control (for Open Loop Test Mode)
- Manual Operators (On / Off Switches) for:
- High Voltage On / Off
- Bias On / Off
- Filament On / Off
- Focus On / Off
- Drives On / Off
- Light Indicators
- Operator Console Arrangement:
- Left Bay Used for CNC Control, Digital Indicators, Potentiometers, and Other Manual Controls
- Right Bay Used for Other Controls and for Optional Upgrade of Controls such as Scanner Monitor, Camera System, etc.
|
| Hand
Held
Pendant |
Provides Easy Control for Operator During Part Processing
- E-Stop
- Axis Selection
- Axis Mode Jog
- Jog Plus, Jog Minus Buttons
- Dry Run Selection
- Start / Stop of Part Program
|
|
|
Advantage 400 Basic Computer Control for Electron Beam Welding Equipment: Feature
Sheet
